High Voltage ACSR Cable Aluminum Cable For Overhead Transmission Line

Quick Details

Packaging & Delivery

Packaging Details: New wooden drum, Reel, Circle or according to customer's request
Delivery Time: According to customer's request, usually 2-4 weeks.

Construction

Standard 6201-T81 high strength aluminum conductors, conforming to ASTM Specification B-399, are concentric-lay-stranded, similar in construction and appearance to 1350 grade aluminum conductors. Standard 6201 alloy conductors are similar to other alloy conductors commercially known as Ardival, Aldrey or Almelec. They were developed to fill the need for an economical conductor for overhead applications requiring higher strength than that obtainable with 1350 grade aluminum conductors, but without a steel core.
The DC resistance at 20"C of the 6201-T81 conductors and of the standard ACSR of the same diameter are approximately the same. Conductors of the 6201 J81 alloys are harder and, therefore, have a greater resistance to abrasion than conductors of 1350-H 19 grade aluminum.

Specification

• AAAC bare conductor meets or exceeds the following ASTM specifications:
• B-398 Aluminum Alloy 6201-T81 Wire for Electrical Purposes
• B-399 Concentric-Lay-Stranded 6201 J81 Aluminum Alloy Conductors

Standards

ASTM B398, ASTM B399, BS 3242 DIN 48201, CSA C49, NFC 34-125

Service Performance

1. High tensile strength
2. Long life
3. Light in weigh
4. Suitable for high as well as extra high overhead

Features

• High strength to weight ratio
• Better sag characteristics
• Improved electrical properties
• Excellent resistance to corrosion

Application

Aluminum alloy conductor can replace some part of AAC or ACSR conductor used in overhead power transmission and distribution lines;
Continuously use temperature can reach 90 °C. The use of heat-resisting aluminum alloy conductor temperature can reach 150 °C and above.
It has high current carrying capacity.
The anti-corrosion performance is good.
Heat treatment type magnesium aluminum silicon alloy has good tensile strength, and the conductivity is only about 10% lower than that of aluminum wire, can be used in large span transmission lines.

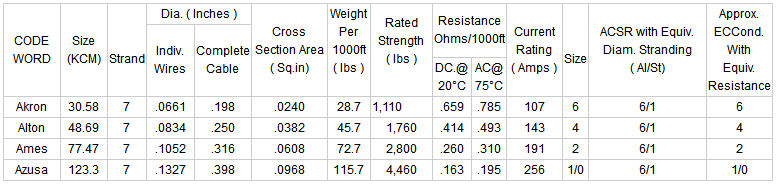

CONDUCTOR TECHNICALS EXAMPLE

Formed in 2001, Guangzhou Xinyuan Hengye Power Transmission Device Co., Ltd. specializes in the manufacture of high voltage power transmission line accessories, as well as research and development in related areas. Our company is located at Zengcheng Yonghe, in the east part of Guangzhou, with excellent environment and convenient transportation.

Over years of development, we have gradually established ourselves as one of the market leaders, owing to our highly competitive strength in high voltage technology, complete production facilities and work force.

Work Force

We take special pride in or R&D and management teams. Now we have about 326 staff members, more than 30.6% of whom are qualified engineers and technicians, in addition to 34 R&D personnel. Our extensive expertise ranges from mechanical engineering, corona, electrical design and product testing, to manufacturing process.

Product Range

The company focus on development and production of fittings and conductors for voltage from 110kV to 1000kV. It had supplied around 10 transmission lines for 800kV till 1000kV in domestic. For oversea market, it had supplied to Vietnam(220kV&500kV), India(400kV&765kV), Poland(110kV to 400kV), Pakistan, Bangladesh, Syria, Paraguay, etc.

To ensure quality products, we have accumulated experience in designing and producing electric power fittings, electric substation fittings, and ultra-high voltage power transmission products. Our major products include 500kV heat-resistant power line fittings, energy-saving power line fittings, environmentally-friendly power line fittings, and high altitude line fittings. We also do research and development in related areas.

Over years of development, we have provided line fittings for heavy snow area, 750kV ultra-high voltage AC line fittings, 800kV ultra-high voltage DC line fittings, and 1000kV ultra-high voltage AC line fittings. Our products are designated to be used in national large power transmission projects, such as The Three Gorges and west-east power transmission, and are exported to many foreign countries in the Middle East and Mid and South Asia. Apart from this, we provide nonstandard and customized products according to the specific requirements of our clients.

We are an ISO9001:2000 certified company. All Manufactured products have been thoroughly tested in accordance with the national standards prior to shipment. Outstanding management patterns, advanced production techniques, and standardized testing equipment and procedures serve as the basis of our constant pursuit towards Zero Defect.

The company wholly owned subsidiary Fogang Xinyuan Hengye Cable Technology Co., Ltd. (hereinafter referred to as "Fogang Xinyuan") as the main body to carry out the research and development, production and sales of stranded carbon fiber core conductor. Fogang Xinyuan was established in November 2009 with a registered capital of 76,000,000 RMB, which was located in West Yingfo Road, Shijiao Town, Fogang District, Qingyuan City.

Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China. ACMCC is designed for double capacity of power transmission. ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc. Fogang Xinyuan also has a full set of independent intellectual property rights of the manufacturing process, production equipments and product structure for ACMCC conductor.
