WIRE VISE

QUICKVISE /QUICKLINK

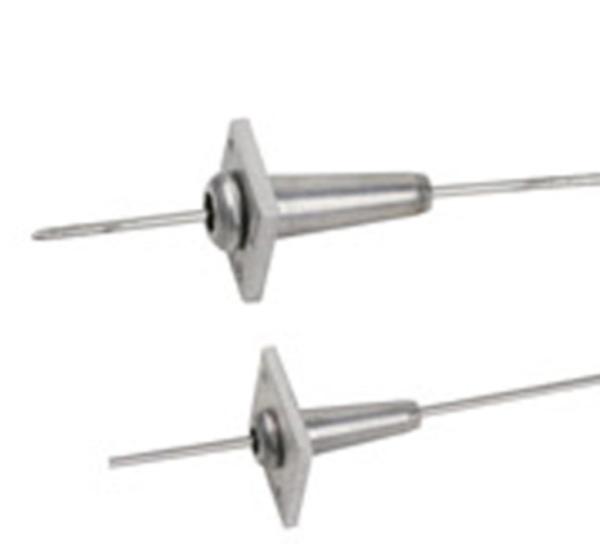

The WIRE VISE and FAST SPLICE can fasten H-T wires without a tool. Merely insert the wires into the holes. The wires are gripped by spring-loaded clamps which tighten more securely as the wires are pulled harder, holding the wires at over 80% of the breaking strength of the wire itself.
The FASTSPLICE is double sided for joining two ends of wire on in-line splices whereas the FASTVISE is half of a FASTSPLICE and is used for terminations at an end post. Each wire on a fence requires one FASTVISE.

To use the FASTVISE, drill a 3/8 inch hole through the end post and pull the wire through the hole. Then put the FASTVISE on the wire and tap it lightly into the hole. If final tensioning is to be done with the FASTVISE, it is recommended to pull the wire to the end post with a chain grab, then push the slack through the hole and FASTVISE. A special tightening tool (TVT) is also available for use with the FASTVISE. It grabs the wire which has been threaded into the FASTVISE and a simple prying action pulls the wire through the FASTVISE to the desired tension.
A TWR wire release tool can be used to remove most 12.5 gauge FASTSPLICE from the fence wire. This allows the FASTSPLICE to be reused if care is taken during both initial installation and later removal.

QUICKVISE /QUICKLINK Packing specification

Formed in 2001, Guangzhou Xinyuan Hengye Power Transmission Device Co., Ltd. specializes in the manufacture of high voltage power transmission line accessories, as well as research and development in related areas. Our company is located at Zengcheng Yonghe, in the east part of Guangzhou, with excellent environment and convenient transportation.

Over years of development, we have gradually established ourselves as one of the market leaders, owing to our highly competitive strength in high voltage technology, complete production facilities and work force.

Work Force

We take special pride in or R&D and management teams. Now we have about 326 staff members, more than 30.6% of whom are qualified engineers and technicians, in addition to 34 R&D personnel. Our extensive expertise ranges from mechanical engineering, corona, electrical design and product testing, to manufacturing process.

Product Range

The company focus on development and production of fittings and conductors for voltage from 110kV to 1000kV. It had supplied around 10 transmission lines for 800kV till 1000kV in domestic. For oversea market, it had supplied to Vietnam(220kV&500kV), India(400kV&765kV), Poland(110kV to 400kV), Pakistan, Bangladesh, Syria, Paraguay, etc.

To ensure quality products, we have accumulated experience in designing and producing electric power fittings, electric substation fittings, and ultra-high voltage power transmission products. Our major products include 500kV heat-resistant power line fittings, energy-saving power line fittings, environmentally-friendly power line fittings, and high altitude line fittings. We also do research and development in related areas.

Over years of development, we have provided line fittings for heavy snow area, 750kV ultra-high voltage AC line fittings, 800kV ultra-high voltage DC line fittings, and 1000kV ultra-high voltage AC line fittings. Our products are designated to be used in national large power transmission projects, such as The Three Gorges and west-east power transmission, and are exported to many foreign countries in the Middle East and Mid and South Asia. Apart from this, we provide nonstandard and customized products according to the specific requirements of our clients.

We are an ISO9001:2000 certified company. All Manufactured products have been thoroughly tested in accordance with the national standards prior to shipment. Outstanding management patterns, advanced production techniques, and standardized testing equipment and procedures serve as the basis of our constant pursuit towards Zero Defect.

The company wholly owned subsidiary Fogang Xinyuan Hengye Cable Technology Co., Ltd. (hereinafter referred to as "Fogang Xinyuan") as the main body to carry out the research and development, production and sales of stranded carbon fiber core conductor. Fogang Xinyuan was established in November 2009 with a registered capital of 76,000,000 RMB, which was located in West Yingfo Road, Shijiao Town, Fogang District, Qingyuan City.

Fogang Xinyuan is the solo manufacturer for ACMCC conductor (Aluminium Conductor Multi-strand Carbon Fiber core) in China. ACMCC is designed for double capacity of power transmission. ACMCC Conductors can meet the requirements of ASTM, EN, BS and IEC etc. Fogang Xinyuan also has a full set of independent intellectual property rights of the manufacturing process, production equipments and product structure for ACMCC conductor.
